C310 ECO-A

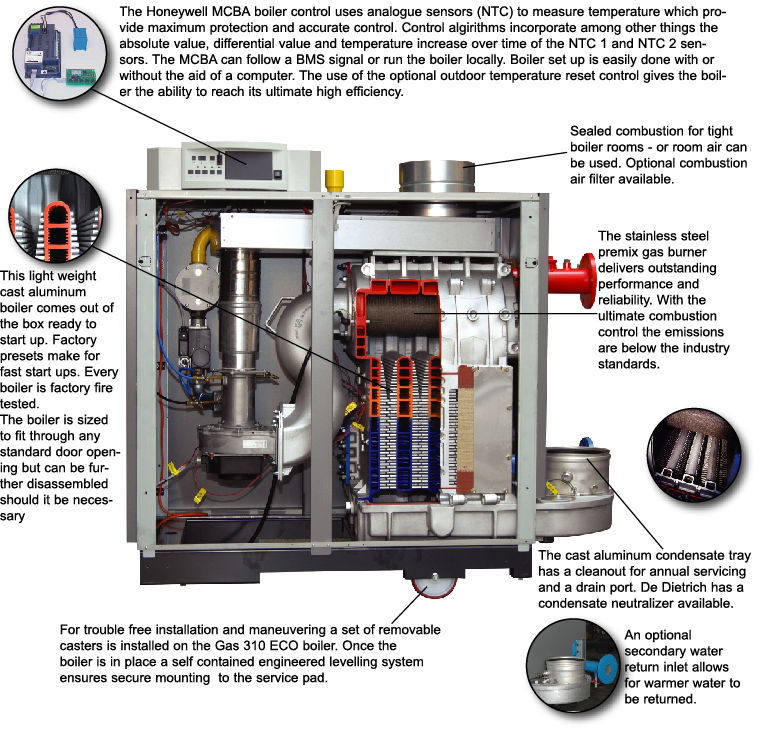

The De Dietrich Gas 310 ECO Series of condensing boilers combines over thirty years of European condensing technology experience with proven North American control expertise. The cast aluminum heat exchanger allows for superior and faster heat transfer that results in greater efficiencies. The boilers’ large water-ways result in lower pressure drops through the boiler, allowing for smaller pump sizes. The state of the art premix burner is
capable of high turn down ratios that allow for maximum performance and lower NOx emissions. The light weight heat exchanger enables installation in weight sensitive locations, over 30% lighter than other condensing boilers. A ten year non pro-rated warranty covers the cast aluminum heat exchanger from anything that you throw at it.
The user and installer friendly Honeywell boiler control system incorporates a P.I.D. function that eliminates overshooting and maintains steady system temperatures. With four temperature sensors constantly monitoring the inlet and outlet temperatures, maximum protection of the heat exchanger is provided.
The boiler maximum capacity can be adjusted to within 25% of the total building load requirements. Meaning the high fire can be set to fire at the design firing rate. With five models ranging from 1,000 to 2,000 MBH (output) you can pinpoint the model that fits your application perfectly.
Standard Features
True modulating combustion, either remotely or
locally
No minimum return water temperature
requirements
Operates up to 81°F temperature differential
Four boiler temperature sensors for ultimate
protection & operation
Factory packaged & tested for simple, easy
Plug & Play installation
ASME MAWP 100 psi maximum
pressure rating
Quiet operation - less than 60 dBA
State of the art MCBA Honeywell boiler
controller. Easily integrated with building
management systems and Required Control
Schemes
Proven thirty year European cast aluminum
heat exchanger design maximizes condensing
operation
Cast aluminum heat exchanger is not sensitive
to condensate corrosion unlike stainless steel
Optimum cast aluminum design results in
efficient heat transfer - seven times more
conductive than stainless steel at a third of the
weight. Results in less system water, faster
response & less structural loading concerns

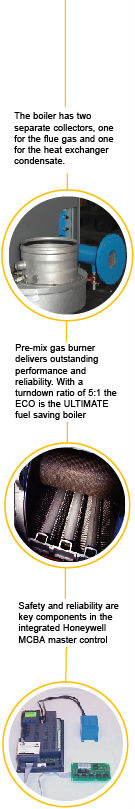

Pre-mix combustion with Honeywell fuel-air ratio
valve allows higher turndowns, lower inlet gas
pressure and sealed combustion Stainless steel
woven mesh premix burner
Piping connection options (right hand & left
hand) allow for modular installations with 1”
minimum clearance
Standard with probe type LWCO (manual reset),
high limit Aquastat (manual reset) & 30 psi
pressure relief valve
Three wheels for easy mobility in boiler rooms
10 year heat exchanger warranty (non-
prorated)
3.5” to 14” w.c. natural gas supply pressures
